FiiO K3

Products

FiiO K3

FiiO K3(1).jpg
FiiO K3(2).jpg
FiiO K3(3).jpg
FiiO K3(4).jpg
FiiO K3(5).jpg
FiiO K3(1).jpg
FiiO K3(2).jpg
FiiO K3(3).jpg
FiiO K3(4).jpg
FiiO K3(5).jpg
sold out

FiiO K3

149.95

Pocket-size Power Flexiblity

Headphone Amplifier & USB-C DAC

Features

  • 2 USB audio modes

  • PCM384k/ DSD256 decoding

  • Dual headphone outputs

  • Dual digital outputs

  • ADC volume control

Add To Cart

Technical Specs

Model: No.K3

USB: Type-C

USB Audio Class: UAC1.0 + UAC2.0

Volume Knob: ADC

Gain: L/H

Bass Boost: 0/+6dB

Line Out: 3.5mm

Headphone Out 1: 3.5mm single-ended output

Headphone Out 2: 2.5mm TRRS balanced output

Coaxial Out: RCA for 192kHz, support DSD64 DOP

Optical Out: Up to 96kHz

USB Chip: XMOS XUF208

USB Driver: ASIO/KS/DS/WASAPI/DSD DOP(Native)

Audio DAC: AKM AK4452

LPF OP AMP: TI OPA1612

Driver OP AMP: OPA926×2

Output Power 1: (3.5mm headphone output): 220mW(16Ω) / 120mW(32Ω)

Output Power 2: (2.5mm TRRS balanced headphone output): 320mW(16Ω) / 200mW(32Ω)

Line Level: 1.9Vrms

DAC: 384kHz/32bit

DSD: DSD256

SNR: ≥113dB

THD+N: ≤0.004%

Frequency Response: 20Hz-80kHz

RGB indicator: Sample rate ≤ 48kHz  - Blue / Sample rate >48kHz - Yellow / DSD format - Green

Dimensions: 70×58×22mm

Weight: 82g

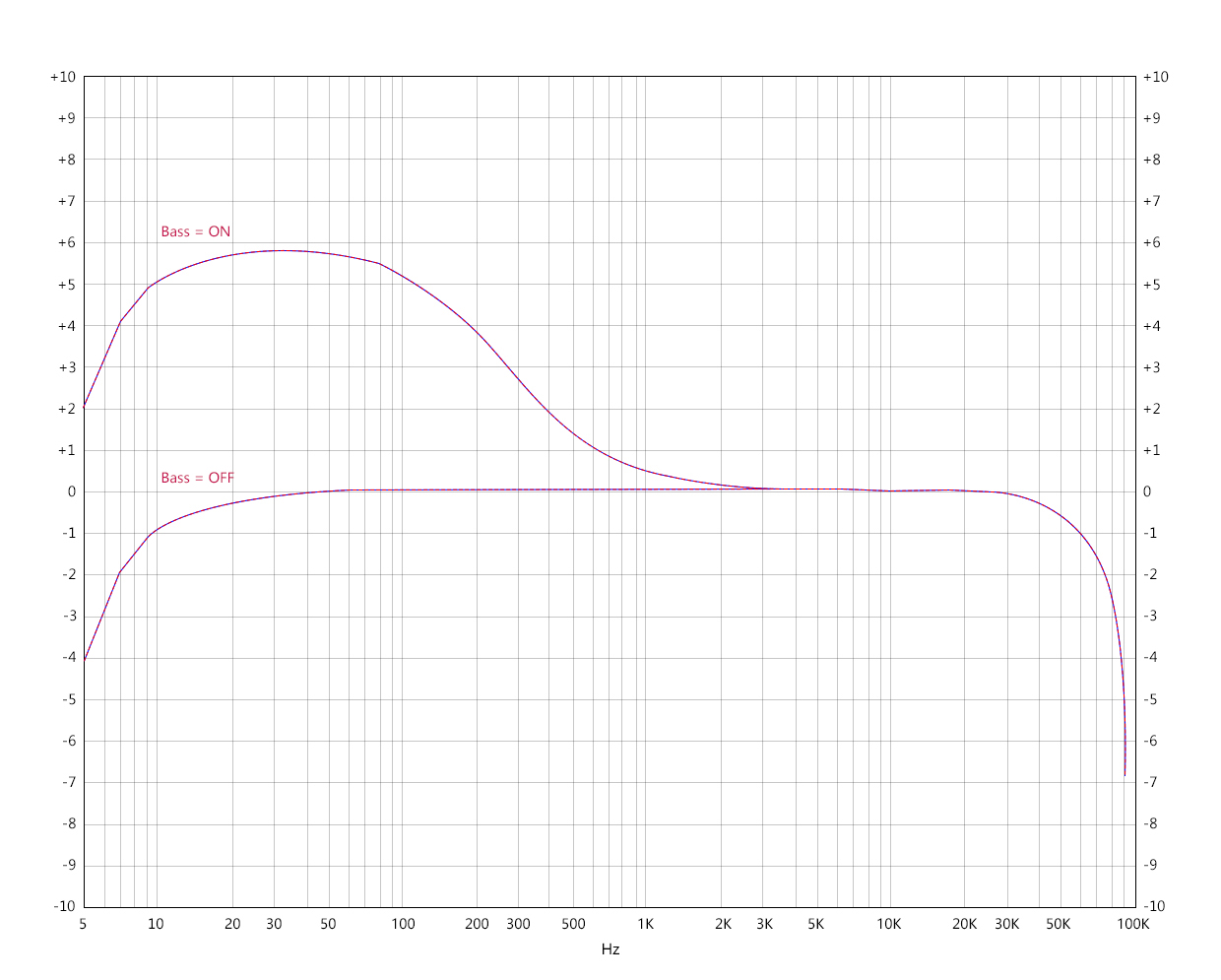

Frequency response curve 1 (Headphone output)   Test condition: USB DAC input, play -5 dB sinusoidal signal, 192kHz 5-92kHz, 32Ω loaded

Frequency response curve 1 (Headphone output)

Test condition: USB DAC input, play -5 dB sinusoidal signal, 192kHz 5-92kHz, 32Ω loaded

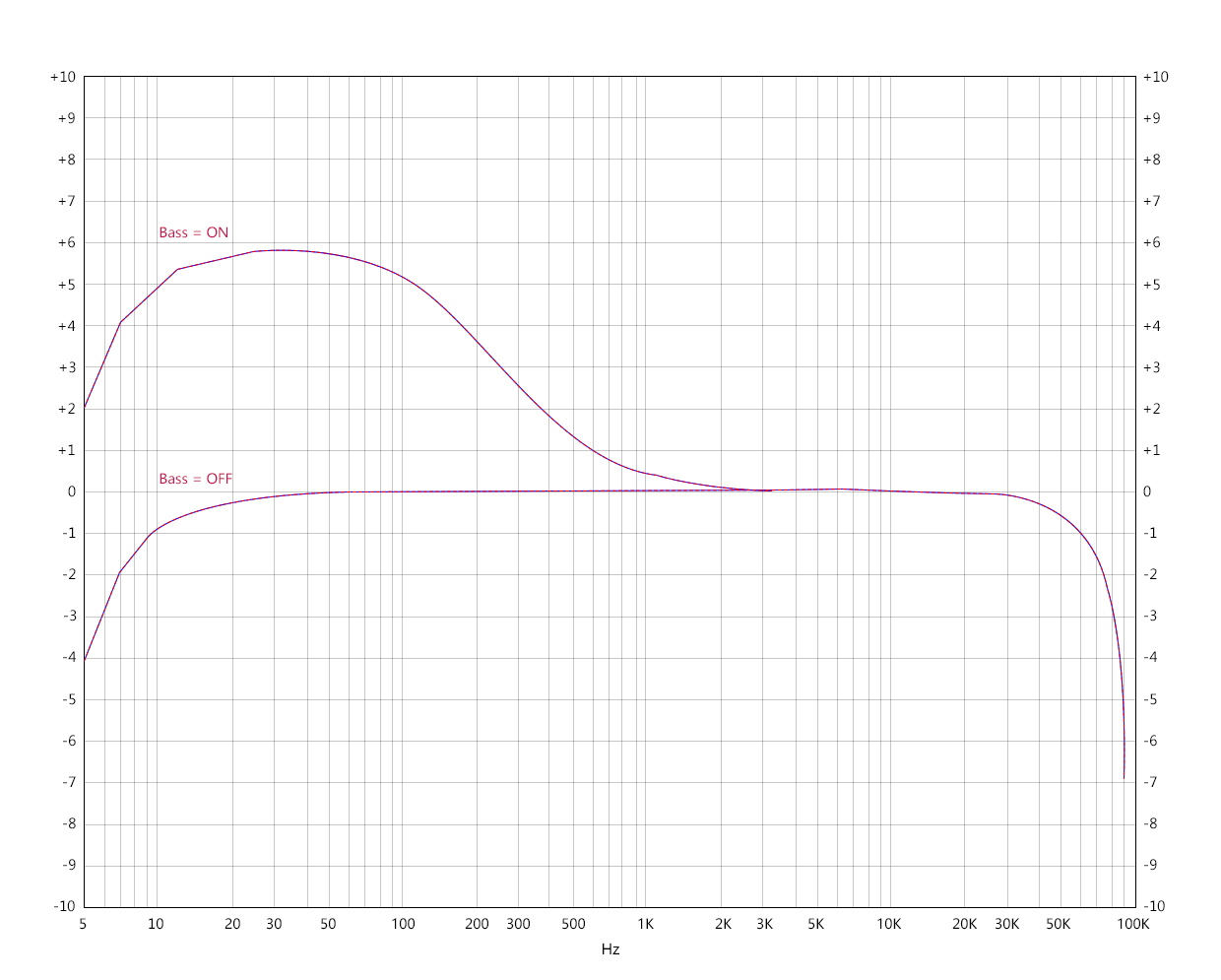

Frequency response curve 2 (Line output)   Test condition: USB DAC input, play -5 dB sinusoidal signal, 192kHz 5-92kHz, 10K loaded

Frequency response curve 2 (Line output)

Test condition: USB DAC input, play -5 dB sinusoidal signal, 192kHz 5-92kHz, 10K loaded

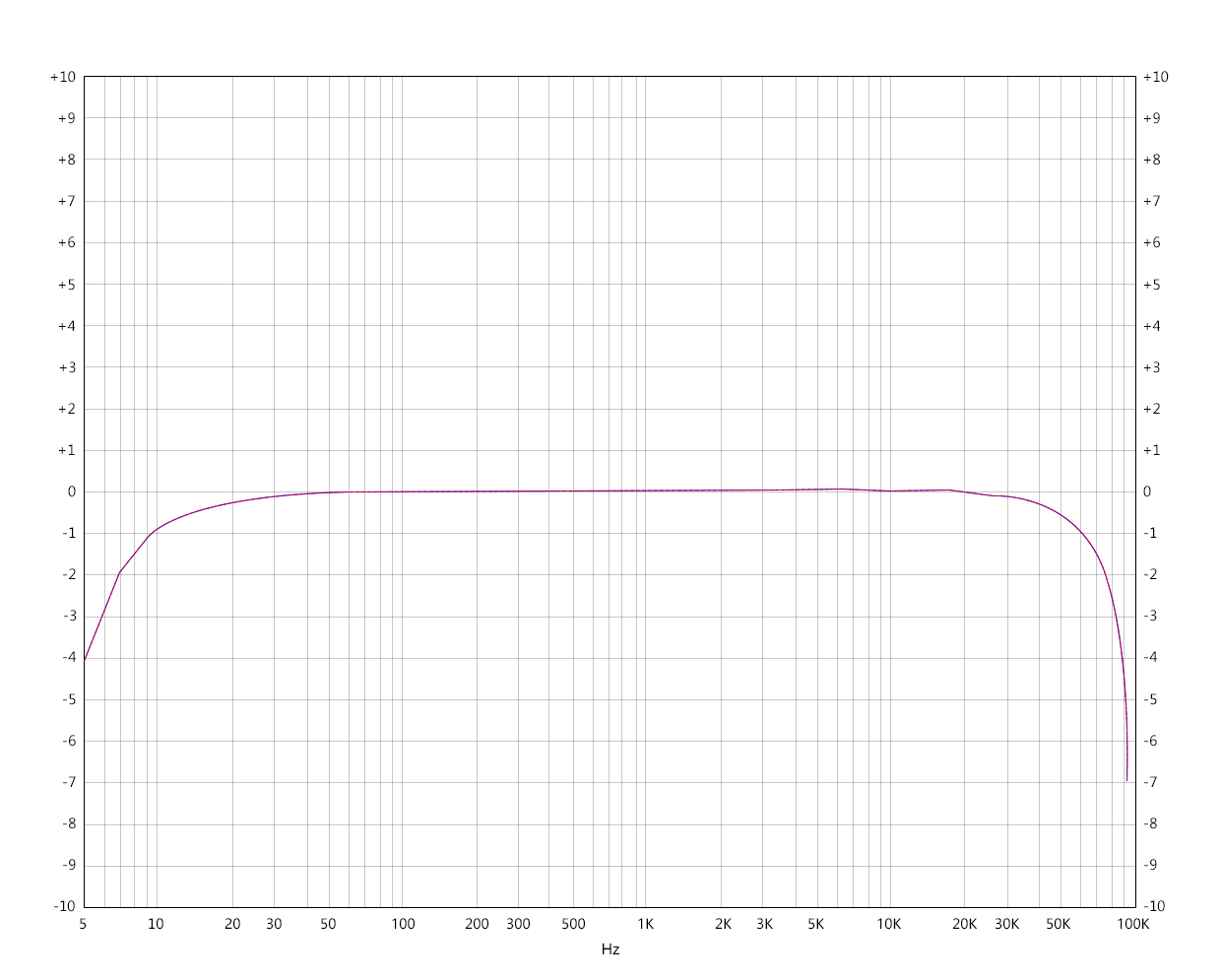

Frequency response curve 3 (Balanced output)   Test condition: USB DAC input, play -5 dB sinusoidal signal, 192kHz 5-92kHz, 32Ω loaded

Frequency response curve 3 (Balanced output)

Test condition: USB DAC input, play -5 dB sinusoidal signal, 192kHz 5-92kHz, 32Ω loaded
