NEW ER3SE/XR Earphones
In-ear Invented here:
The ER3SE Studio Edition provides a high level of sensitivity, making it a perfect match for the portable media players on the market today. The ER3SE offers audio professional grade sound reproduction at an affordable price.
The ER3XR Extended Response offers a modest bass boost, building on the sound quality of the ER3SE, while providing a slight bass boost for those listeners that prefer a stronger low end response.
No compromise, high-performance noise-isolating earphones that deliver best-in-class benefits and superior value, perfectly matched to the latest product innovations from most music players that support a 3.5-mm stereo phone plug.
Studio Grade Accuracy
Achieves highest output sensitivity in its class with 102 dB SPL sensitivity at 1 kHz at 0.1 mV
High performance, precision matched, balanced armature drivers
35 dB - 42 dB noise isolation
Documented highest noise isolation of any earphones or headphones on the market today
Precision machined metal bodies with anodized finish
Assortment of noise-isolation eartips ensures proper seal and comfort
CUSTOM•FIT option available
Detachable, 4ft. cable allows for easy replacement
Durability and Warranty
2-year replacement warranty
Reinforced cable for durability
User-replaceable filters that protect the balanced armature drivers from ear wax
In the Box
Assortment of ear tips
Filter removal tool and replacement filters
Frequency Response: 20 Hz - 16 kHz
Transducers: High performance, balanced armature micro-drivers
Noise Isolation: 35-42 dB
Impedance: 22 Ohms
Sensitivity: 102 dB
Maximum Output (SPL): 120 dB
Cable: Detachable, 4 ft
Warranty: 2 years
CUSTOM•FIT Option: Yes
Instructions For Use
Important: Sound quality, full bass response and noise isolation all depend on a good eartip seal in the ear canal.
While pulling up and out on the back of the ear carefully insert the earphone.
Twist the earphone into the ear canal while inserting, until outside noise is blocked out.
3-flange eartips: Moistening eases insertion.
Foam eartips: Roll down or compress foam eartip before inserting. Hold the eartip in place for about 5 seconds while the foam expands to create a tight seal in the ear canal.
Remove earphones slowly with a twisting motion to gradually break the seal. Do not pull on the cable to remove the earphones.
Attaching the Clip
Shirt clip attaches to the splitter cable.

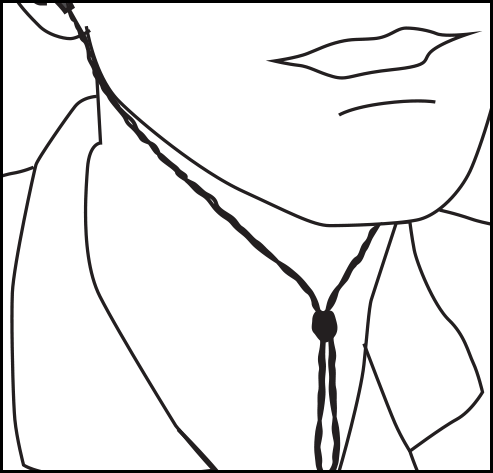

Using the Slider
Slider is used to snug the cable under the chin to help secure the earphones.
Note: Do not pull or twist from the cable connector. It's important to pull straight out.
Note: If the key tab is not aligned with the notch, snap will not engage.
Etymotic earphones have special filters that smooth the frequency response and prevent earwax from entering the earphones. A filter is located at the end of the earphone and is visible when the eartip is removed. If a filter becomes clogged, it should be replaced. A dirty filter will reduce earphone output. The filter should be changed if loudness decreases or the sound quality declines.
Note:Filters are not reusable.
Note: Use the tool to remove the filter.
Note: Do not use the tool to replace the filter.
Cleaning and Replacing Eartips
Over time eartips may lose their elasticity. For best performance and retention, replace 3-flange eartips every 60-90 days. Replace foam and glider eartips frequently.
To clean 3-flange eartips:
Remove the eartip from the earphone.
Clean with water and mild soap.
Dry the eartip before placing it back on the earphone.
Do not expose the earphones to extreme temperatures.
Avoid dropping and strong impact.
Leave eartips on the earphones for shock protection.
Do not pull on the cord to remove the earphone from the audio device or the ear.
Clean or replace eartips prior to use by others.
For best performance and retention in the ear, replace 3-flange eartips every 60-90 days.
Replace foam eartips frequently.
